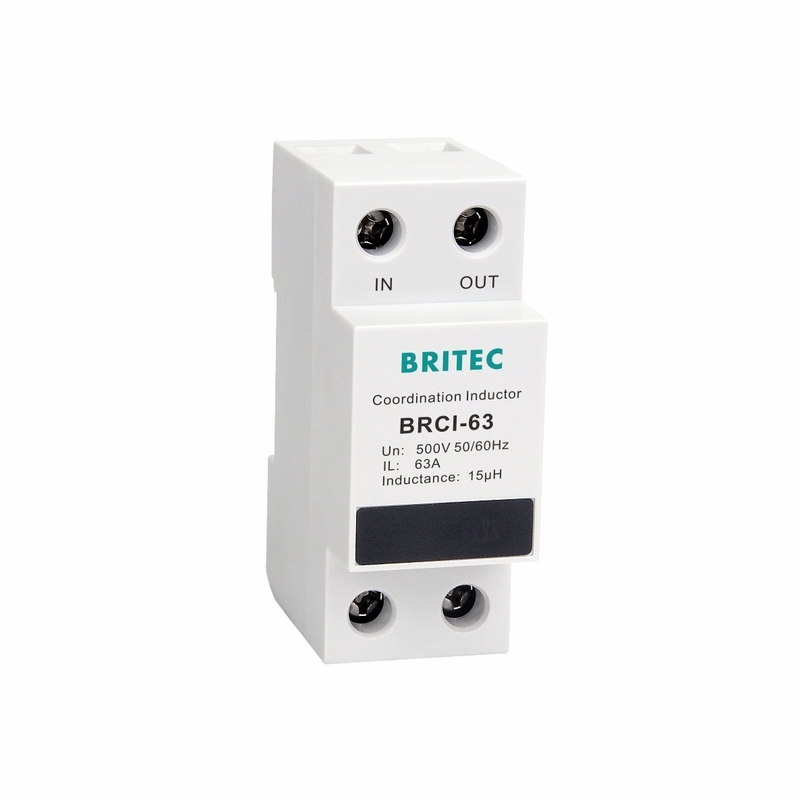

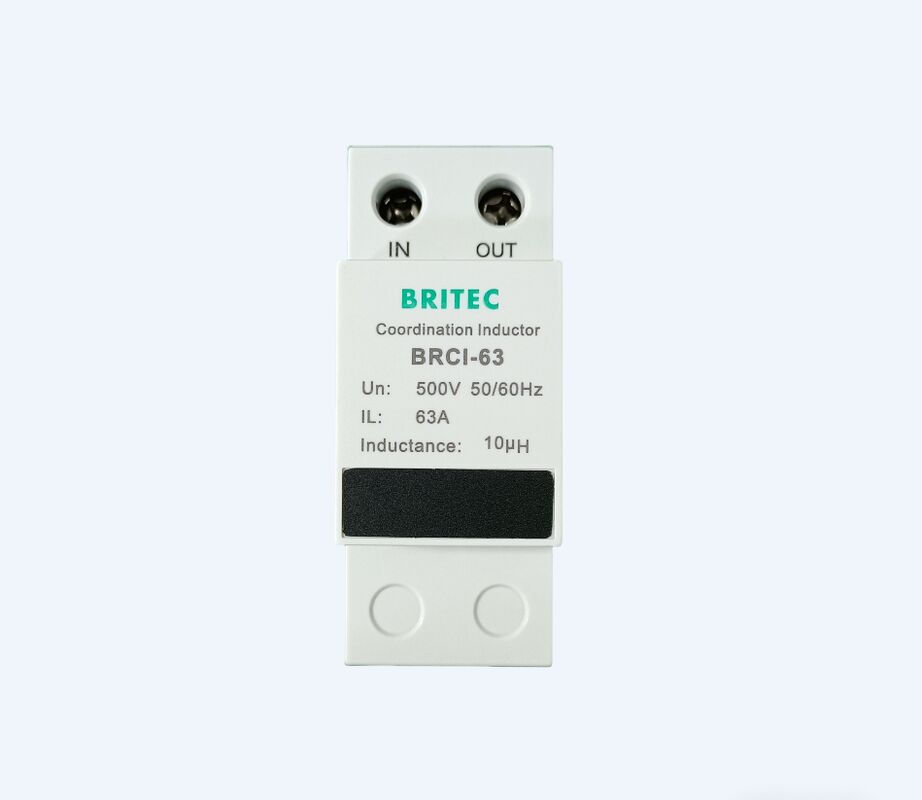

These coordination inductors are specially designed to control the implementation of the primary and secondary levels of SPD surge protectors.
They are necessary where the coordination cannot be accomplished using the ‘natural’ inductance of the active conductors (in particular in a small volume, where the length of line wire between primary SPD and secondary SPD is lower than 10m).
Connected in series on the line to be protected and depend on the maximum line current.
Technical Parameters:
| Printing |
As Your Requests |
| Warranty |
1 Years |
| Maximum continuous voltage |
500V Ac |
| Function |
Decoupling Inductivity |
| Design |
OEM.ODM Designs |

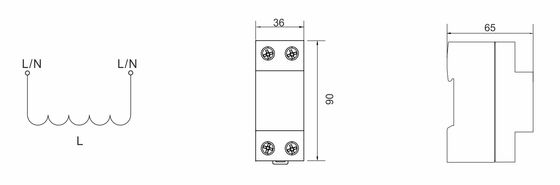

| L×W×H (mm) |
36×90×65 |
Decoupling inductance
• Compact design in a 35 mm housing
• Two connection options for input and output
• Rated load current 63 A
• Nominal inductance 15 µH
Customization:
Product Customization Services:
- Brand Name: BRITEC
- Model Number: BRCI-63
- Place of Origin: China
- Certification: ISO9001
- Minimum Order Quantity: 10 PCS
- Packaging Details: carton
- Delivery Time: 15 days after receipt of deposit
- Payment Terms: TT
- Supply Ability: 500000 per month
- Design: OEM.ODM Designs
- Printing: As Your Requests
- Warranty: 1 Years
- L×W×H (mm): 36×90×65
- Function: Decoupling Inductivity
