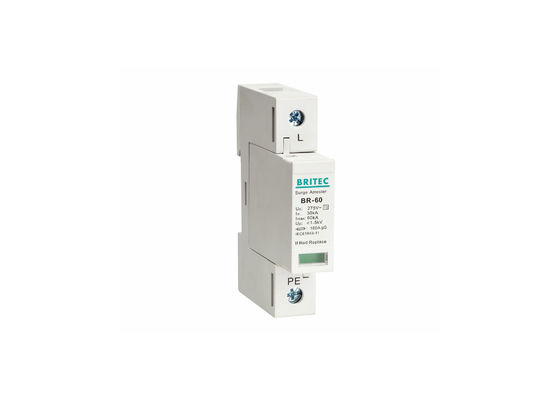

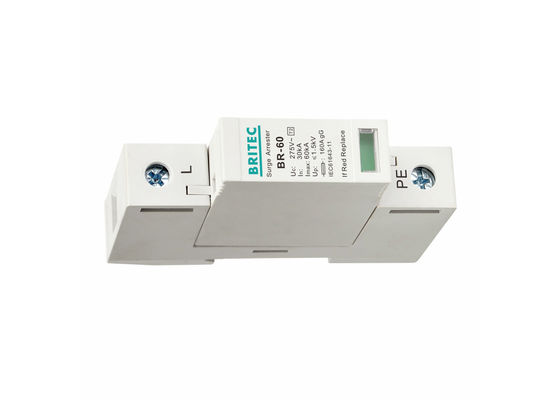

    • Class II Home AC 1p Lightning Protection Imax 60kA Power Surge Protector 275v
    • Class II Home AC 1p Lightning Protection Imax 60kA Power Surge Protector 275v
  • Class II Home AC 1p Lightning Protection Imax 60kA Power Surge Protector 275v

    Ürün ayrıntıları:

    Menşe yeri: Çin
    Marka adı: BRITEC
    Model numarası: BR-60275 1P

    Ödeme & teslimat koşulları:

    Min sipariş miktarı: 100 Adet / Adet
    Ambalaj bilgileri: İHRACAT AMBALAJ
    Teslim süresi: Ödeme yapıldıktan sonra 15 gün içinde sevk
    Ödeme koşulları: L / C, D / A, T / T, Western Union
    Yetenek temini: 50000 Adet / Adet Ay
    İletişim
    Detaylı ürün tanımı
    öğe adı: Surge protectorfunction gtElInit() {var lib = new google.translate.TranslateService();lib.translateP : Zhejiang, Çin (anakara)
    Marka adı: BRITEC Türü: tip 2
    Malzeme: Termal plastik Type itemfunction gtElInit() {var lib = new google.translate.TranslateService();lib.translatePage('e: Yıldırım koruması
    Renk: Beyaz UC: 275v
    içinde: 30kA Kullanım: Düşük voltaj
    Teslim süresi: 15-30 gün Standart: IEC 61643-1
    Vurgulamak:

    lightning protection device

    ,

    lightning surge protector

    Class II Home AC 1p Lightning Protection Imax 60kA Power Surge Protector 275v



    Feature:



    Indoor fixed installation, voltage limited type.
    It adopts 35mm standard rail.
    The response time in the 25 nanosecond.
    When the SPD works normally, the visible window displays green, and when it fails, it displays red.



    Technology characteristic:



      BR-60 275 1P
    SPD classification according to EN61643-11 Type 2
    SPD classification according to IEC61643-11 Class II
    Max. continuous operating a.c. voltage                       Uc 275V
    Nominal discharge current (8/20us)                              In 30kA
    Max. discharge current (8/20us)                               Imax 60kA
    Voltage protection level                                               Up ≤1.5kV
    Max. backup fuse 200A
    Response time                                                              tA ≤25ns
    Operating temperature range                                       Tu -40℃—80℃
    Operating state / fault indication green / red
    Cross-section area (Min.) 4mm2
    Cross-section area (Max.) 35mm2
    For mounting on 35mm Din rail
    Enclosure material                   Thermal plastic UL94-V0
    Degree of protection IP20



    Dimension:



    Class II Home AC 1p Lightning Protection Imax 60kA Power Surge Protector 275vfunction gtElInit() {var lib = new google.translate.TranslateService();lib.translatePage('en', 'tr', function () {});} 0



    Application:

    Used to protect all kinds of electrical equipment in the power system from lightning over-voltage,
      operation over-voltage, power frequency transient over-voltage impact damage to an electrical appliance.

    Workshop:

    Class II Home AC 1p Lightning Protection Imax 60kA Power Surge Protector 275vfunction gtElInit() {var lib = new google.translate.TranslateService();lib.translatePage('en', 'tr', function () {});} 0

    Certifications:

    Class II Home AC 1p Lightning Protection Imax 60kA Power Surge Protector 275vfunction gtElInit() {var lib = new google.translate.TranslateService();lib.translatePage('en', 'tr', function () {});} 0

    Shipping:

    Class II Home AC 1p Lightning Protection Imax 60kA Power Surge Protector 275vfunction gtElInit() {var lib = new google.translate.TranslateService();lib.translatePage('en', 'tr', function () {});} 0

    FAQ:


    Q1. What advantages do you have?

    A1. We are the direct Manufacturer in Wenzhou China, we have professional developing,

          marketing & production team to offer you the most competitive price and best service.



    Q2. Could you print our own logo?

    A2. Yes, our company are available for Retail & Wholesale & OEM & ODM.



    Q3. How long is the quality guarantee?
    A3. 2 years warranty, our products are 100% inspection.
