Menşe yeri: | Çin |
Marka adı: | BRITEC |
Sertifika: | CE |
Model numarası: | BR-CCTV-21M |
Min sipariş miktarı: | 200 adet / adet |
---|---|
Ambalaj bilgileri: | İHRACAT AMBALAJ |
Teslim süresi: | 15-30 gün sonra ödeme |
Ödeme koşulları: | T/T |
Yetenek temini: | Ay başına 50000 adet |
: | IL: | 0.5A | |
---|---|---|---|
içinde: | Malzeme: | Alüminyum alaşım | |
Ta: | Bağlantı: | ||
Bant genişliği: | 30Mbps | Ekleme kaybı: | ≤0.3dB |
: | Tu: | -40 ℃ ... + 80 ℃ | |
Vurgulamak: | spd dalgalanma koruyucusu,ticari dalgalanma koruma cihazları |

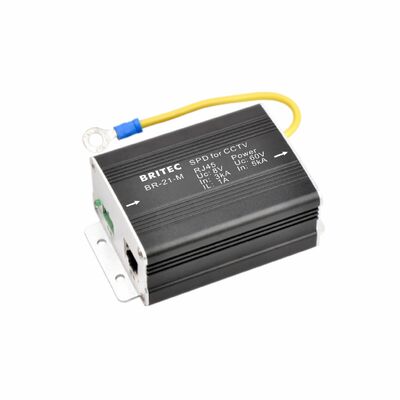

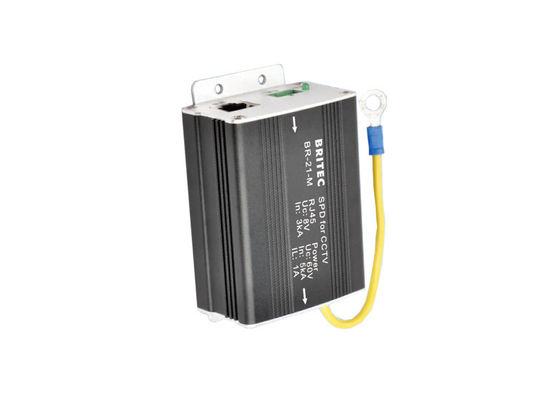

10kA CCTV Data SPD Surge Protector Video Monitoring Surge Arrester RJ45 Terminal Block
Feature:
Product Details:
CCTV-21M-48 | CCTV-21M-230 | |
Test standards | IEC 61643-21 | IEC 61643-21 |
Max. continuous operating d.c. voltage (RJ45)Uc | 6V | 6V |
Max. continuous operating a.c. voltage (RJ45)Uc | 4V | 4V |
Max. continuous operating a.c. voltage (power)Uc | 60V | 275V |
Nominal current IL | 0.5A | 0.5A |
C2 Nominal discharge current (8/20us) In | 5kA | 5kA |
C2 Max. discharge current(8/20μs) Imax | 10kA | 10kA |
Voltage protection level [line-line/shield] (RJ45)Up | ≤30V | ≤30V |
Voltage protection level [line/shield-PG] (RJ45)Up | ≤500V | ≤500V |
Voltage protection level (power)Up | ≤200V | ≤1.2kV |
Response time [line-line/shield] tA | ≤1ns | ≤1ns |
Response time [line/shield-PG] tA | ≤100ns | ≤100ns |
Operating temperature range Tu | -40℃…+80℃ | -40℃…+80℃ |
Connection input/output RJ45/Power | RJ45/Terminal block | RJ45/Terminal block |
Bandwidth | 30Mbps | 30Mbps |
Insertion loss | ≤0.3dB | ≤0.3dB |
Enclosure material | aluminium alloy | aluminium alloy |
Degree of protection | IP20 | IP20 |
Order Code | D9050 | D9051 |
Technology characteristic:
Application:
Advantage:
Our Services:
What is IEC 61643-21 standards?
Workshop:
Shipping:
Certificate:
FAQ:
Q1: How and how long can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality. Then after you send us
confirmed files, the samples will be ready for delivery in 7-10 days. The samples will be sent to you
via express and arrive in 5-7 workdays.
Q2: How to order our product ?
A: Please tell us the model and quantity and other request you need; We make the PI for you; After you
confirm the PI, we arrange the order for you after receiving your payment; After the goods finished,
we send the goods out to you and tell you the tracking number; We will track your goods until you
receive the goods.
Q3: Can I have a visit to your factory before the order?
A: Welcome! Our factory address: Block 1, BoTongHuiGu Industrial Park, Yueqing Economic
Developement Zone, Yueqing, Zhejiang, China.
